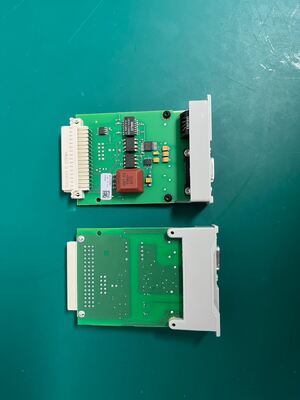

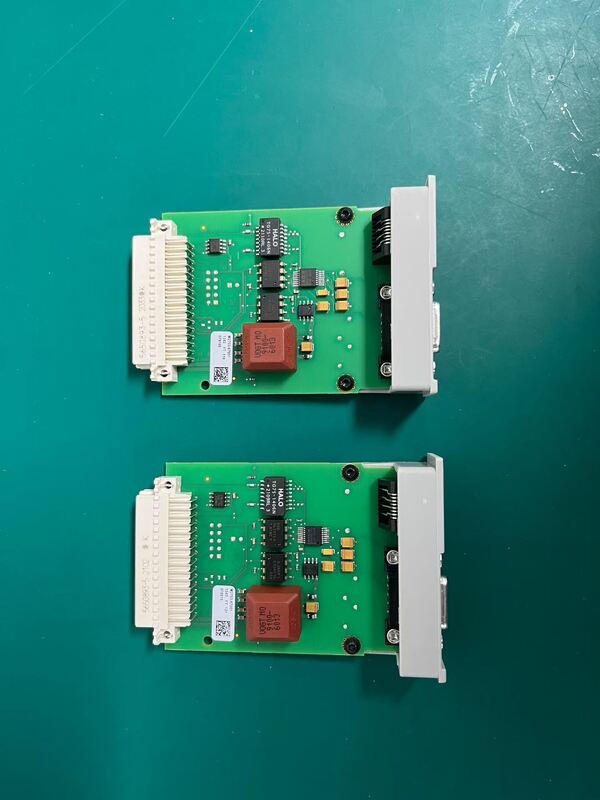

Avalon FM20 / FM30 Network Card Specifications

1. Part Information

• Network Card Part No.: M2703-67001
• Alternative No.: 9001-18481C00A
• Hardware Type: Built-in PCI expansion card
• Applicable Models: Philip Avalon FM20 (M2702A), FM30 (M2703A)

2. Ethernet Specifications

• Interface: RJ45 port
• Speed: 10/100 Mbps auto-negotiation
• Network Protocol: TCP/IP (IPv4), DHCP / BOOTP
• Standard Compliance: IEEE P1073 Medical Information Bus (MIB)
• Transmission Mode: Unicast / Broadcast
• System Compatibility: Supports connection with OB TraceVue and IntelliSpace Perinatal system

3. Network Configuration

• IP Assignment: Default DHCP/BOOTP automatic acquisition; static IP configurable manually
• Network Requirement: Monitor and server PC must be in the same network segment
• Communication Port: LAN for perinatal system data transmission; RS232 reserved for EMR read-only access

4. Environmental & Certification

• Operating Temperature: 0–45 °C (without battery); 0–40 °C (with battery)
• Storage Temperature: −20–60 °C
• Humidity: 10%–95% non-condensing
• Certification: CE, FDA, ISO 13485

5. Main Functions

• Transmit real-time FHR, TOCO, maternal ECG waveforms and numerical data
• Support central monitoring station remote viewing, data storage and report printing
• Hospital system integration with HIS / EMR for medical data sharing
