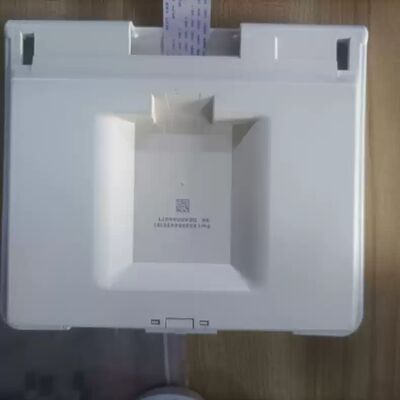

philip FM20 LCD COMPLETE PART M2703‑64503 PN 453564150521
تفاصيل المنتج:
| مكان المنشأ: | إبداعي |
| اسم العلامة التجارية: | PHILIP |
| رقم الموديل: | FM20 FM30 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 |
|---|---|
| الأسعار: | Negotiation, pls contact me |
| تفاصيل التغليف: | علبة كرتون |
| وقت التسليم: | في غضون 1-2 أيام عمل بعد تأكيد الدفع |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 10 |
|
معلومات تفصيلية |
|||
| ماركة: | فيليب | نموذج: | FM20 FM30 |
|---|---|---|---|
| الأسهم: | متاح | ب.ن: | 453564150521 |
| ضمان: | 90 يوما | حالة: | ممتاز |
| إبراز: | philip FM20 LCD COMPLETE PART,Fetal Monitor Parts PN 453564150521,Fetal Monitor Parts PN 453564150521 |
||
منتوج وصف

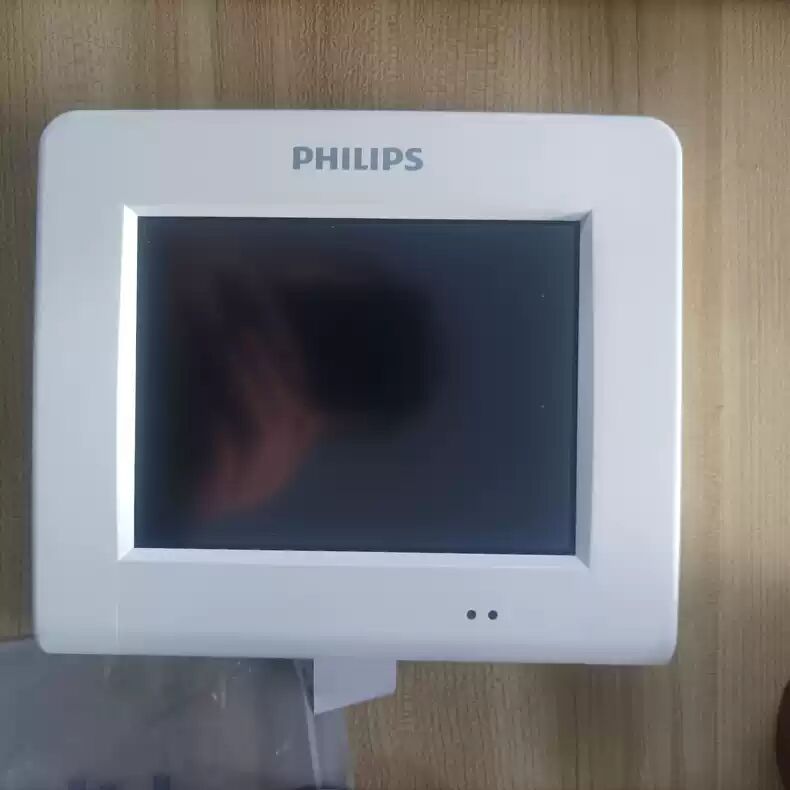

Philip FM20 LCD COMPLETE PART M2703‑64503 PN:453564150521
1. OEM Part Numbers & Compatibility
- OEM Display Assembly Part Numbers:
- Standard non-touch: M2703‑64503
- Capacitive touchscreen version: 453564150521
- Compatible Monitors: Philip Avalon FM20, FM30 Fetal Monitors
- Type: 6.5-inch TFT Color LCD Display Module, foldable/tiltable mount, wide‑viewing angle design
2. Core Display Specifications
- Screen Size: 6.5 inches (diagonal, 16.51 cm), 4:3 standard medical aspect ratio
- Resolution: 640 × 480 (VGA), pixel pitch ~0.21 mm
- Brightness: 300 cd/m² (typical), high‑brightness for clinical ward lighting
- Contrast Ratio: 400:1 (typical)
- Color Depth: 16.7M colors (8‑bit), clear waveform/numeric display
- Backlight: White LED (W‑LED) backlight (low power, long lifespan; legacy units use CCFL)
- Viewing Angle: Horizontal ≥160°, Vertical ≥140° (contrast >10:1)
- Response Time: ≤25 ms (GtG), suitable for real‑time monitoring waveform display
3. Mechanical & Interface Parameters
- Physical Dimensions (Module): Approx. 155 × 120 × 12 mm (W × H × D)
- Weight: Approx. 0.45 kg
- Connectors: LVDS video signal interface + capacitive touch control interface (optional), flat‑flex cable direct‑connect to mainboard
- Power Supply: Host‑powered, DC 5V / 12V, typical power consumption ~6W
- Mounting: 0–90° fold/tilt adjustment; direct replacement without upper‑case disassembly; no post‑replacement safety calibration required
4. Environmental & Reliability
- Operating Temperature: 0°C to 45°C (32°F to 113°F)
- Storage Temperature: -20°C to 60°C (-4°F to 144°F)
- Relative Humidity: ≤95% RH (non‑condensing)
- Protection: Medical‑grade dust‑proof, splash‑resistant; compatible with clinical disinfection cleaning
5. Functional Features
- Auto screen layout adaptation (single/twin/triplet, uterine contraction, maternal parameters)
- Large font/waveform display, full‑screen parameter zoom support
- Adjustable backlight brightness, low‑power energy‑saving mode
